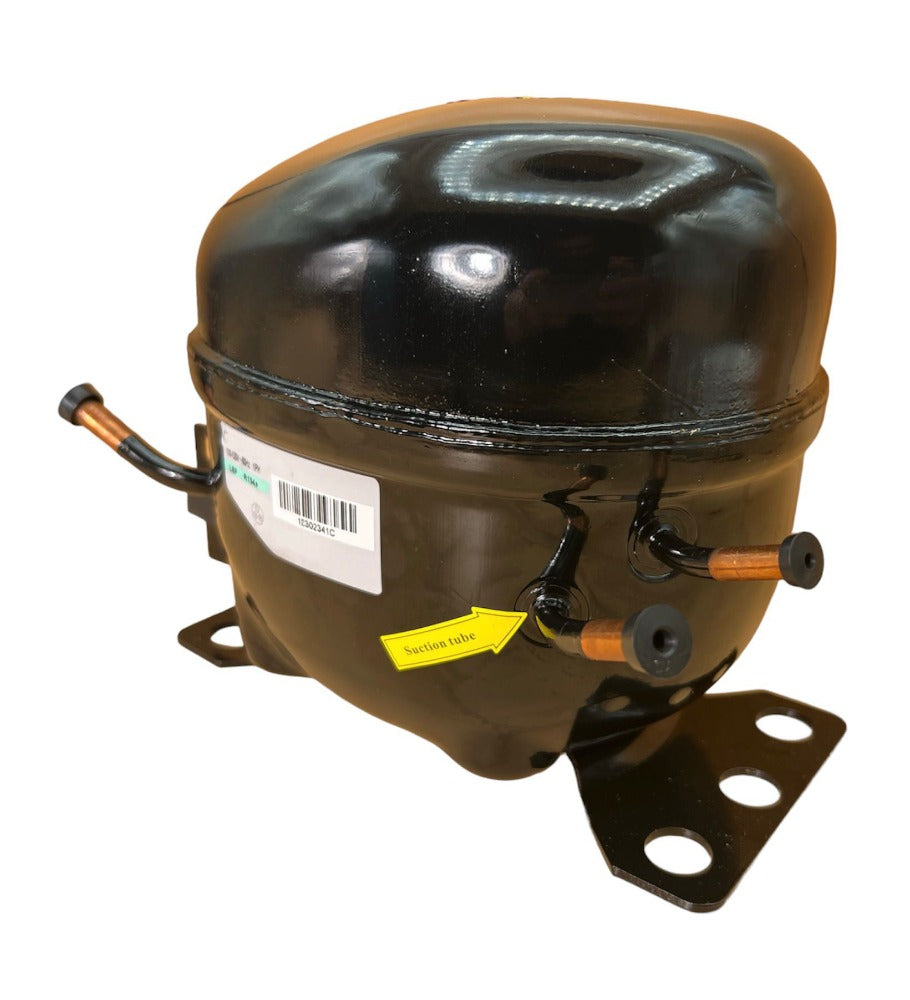

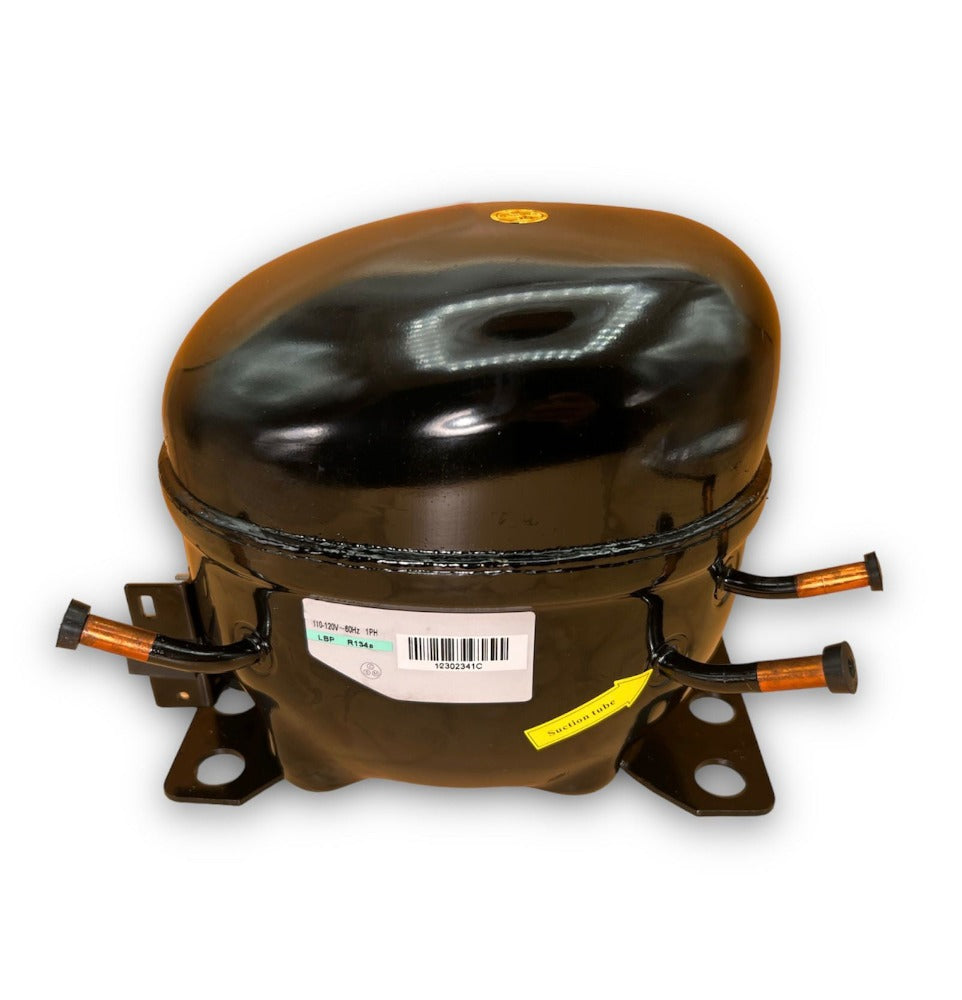

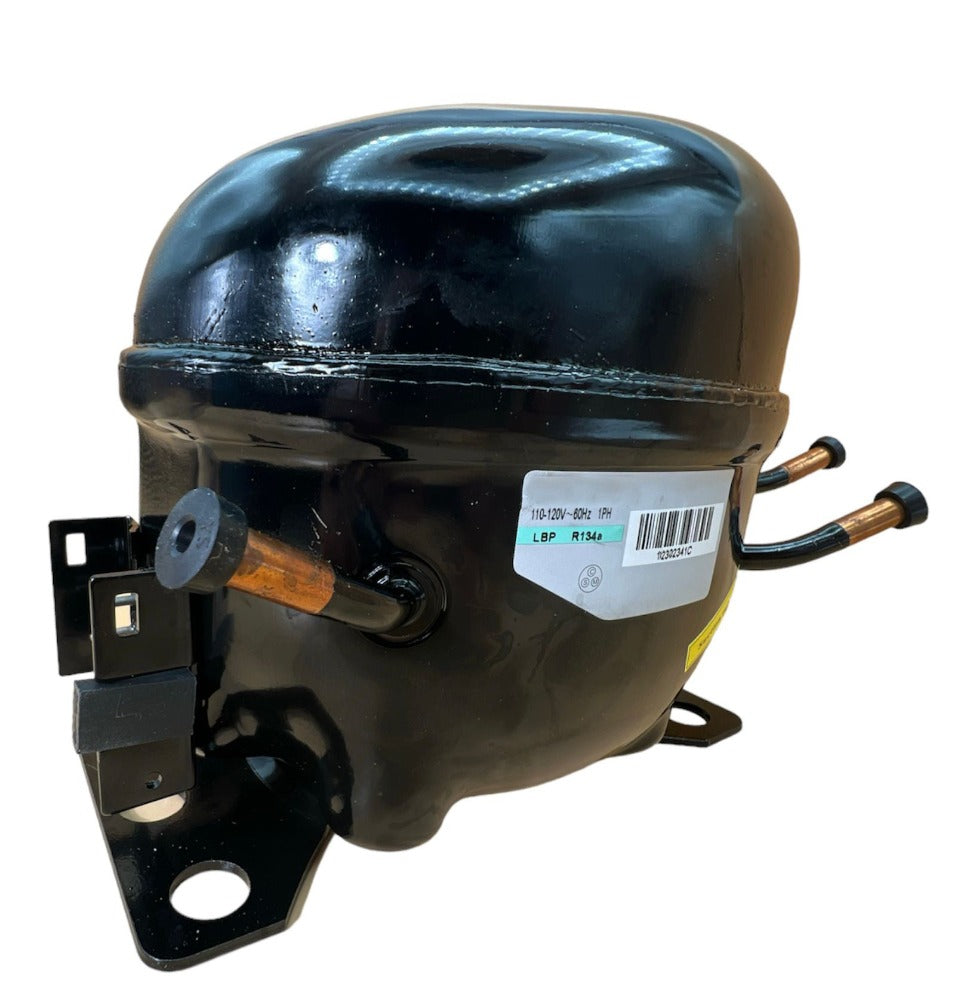

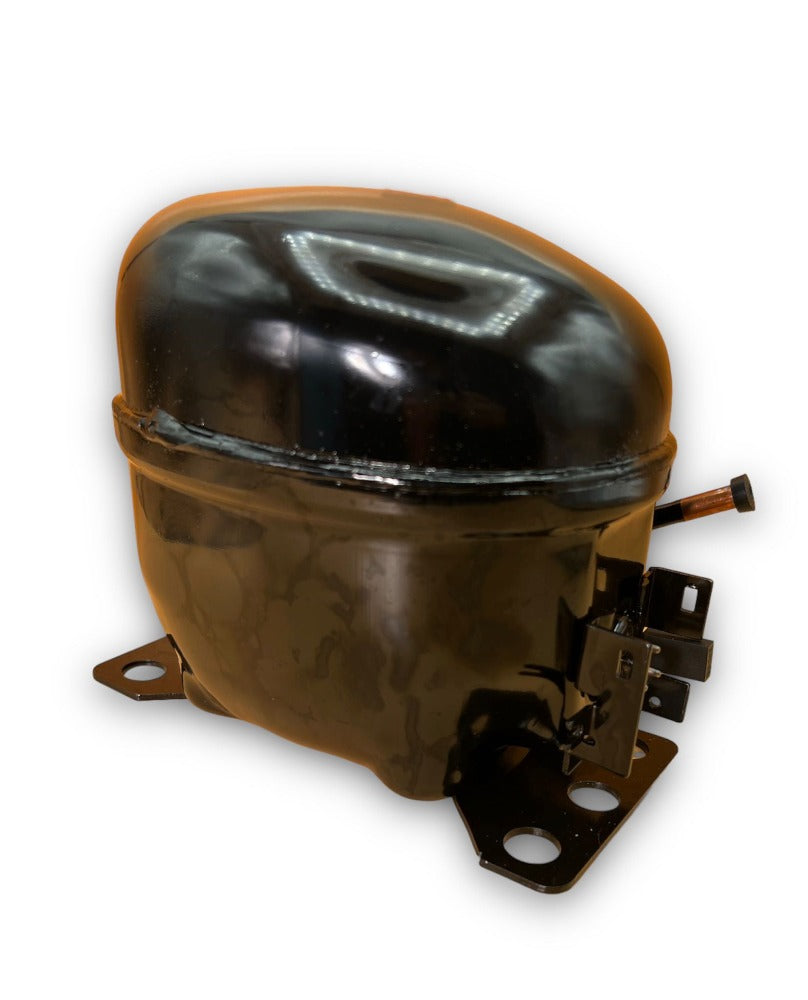

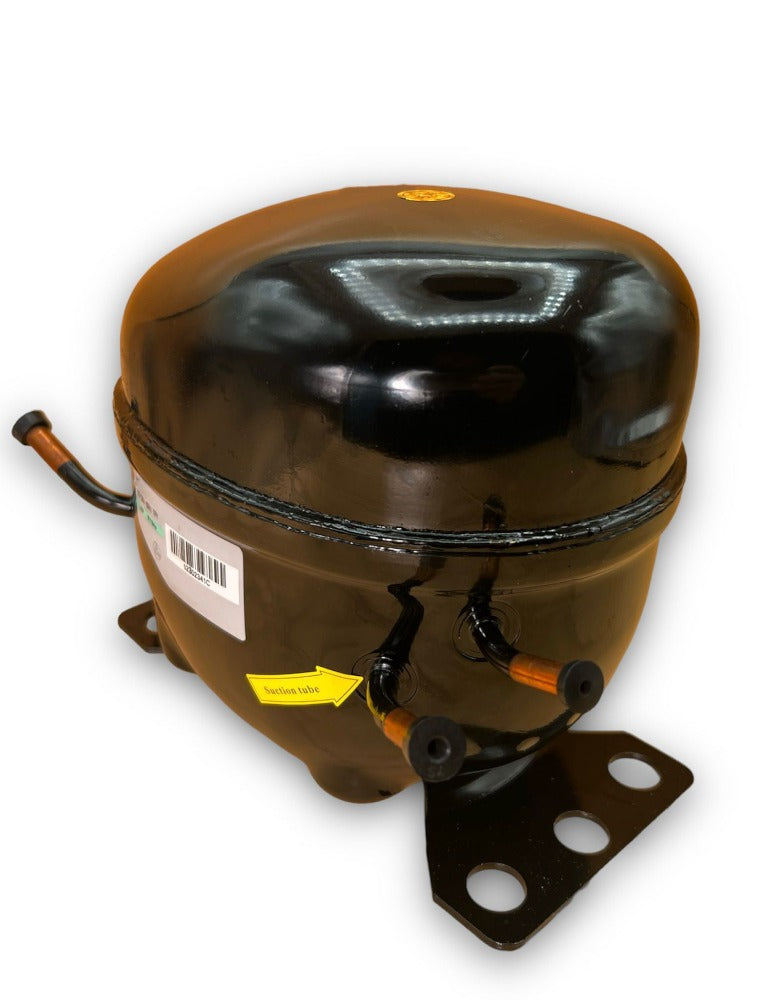

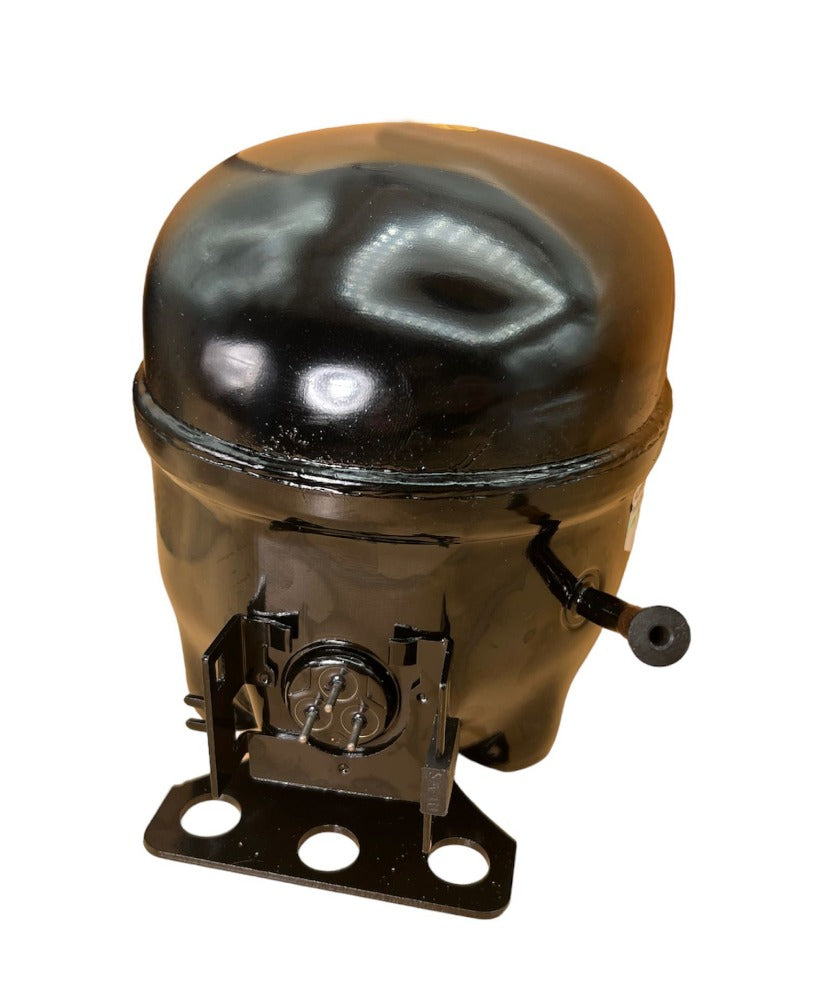

Universal Refrigerator Compressor - PCL86ER6, Replace Most Standard Compressors 1PH.
Universal Refrigerator Compressor - PCL86ER6, Replace Most Standard Compressors 1PH.
In Stock! usually ships same day!
Manufacturer’s Warranty
90 days replacement warranty!
Return Policy
30 days to return on non-electric products
Condition: Unopened, No signs of use
PLEASE NOTE: Unboxed electrical products are not returnable.
Read return policy >>Universal Refrigerator Compressor Kit - PCL86ER6
ITEM DESCRIPTION:
Unplug the Appliance before installing this part
A brand-new replacement part in its original packaging
This kit can replace most standard refrigerator or freezer compressors 1PH or used for custom projects.
PRODUCT TYPE:
- Universal Compressor Kit - R134a
COMPATIBLE BRANDS:
- Whirlpool
- Roper
- Admiral
- Maytag
- Hardwick
- Jenn-Air
- Estate
- Magic Chef
- Crosley
- Inglis
- Norge
- Modern Maid
- Amana
- Kenmore
- KitchenAid
- Caloric
- Ikea
- GE
- General Electric
- Westinghouse
- Monogram
- Café
- Moffat
- Profile
- Sears
- McClary
- Hotpoint
- Frigidaire
- White Westinghouse
- Kelvinator
- Gibson
- Kenmore
- Sears
- Tappan
- Electrolux
REPLACES PART NUMBERS:
- Variable makes and models

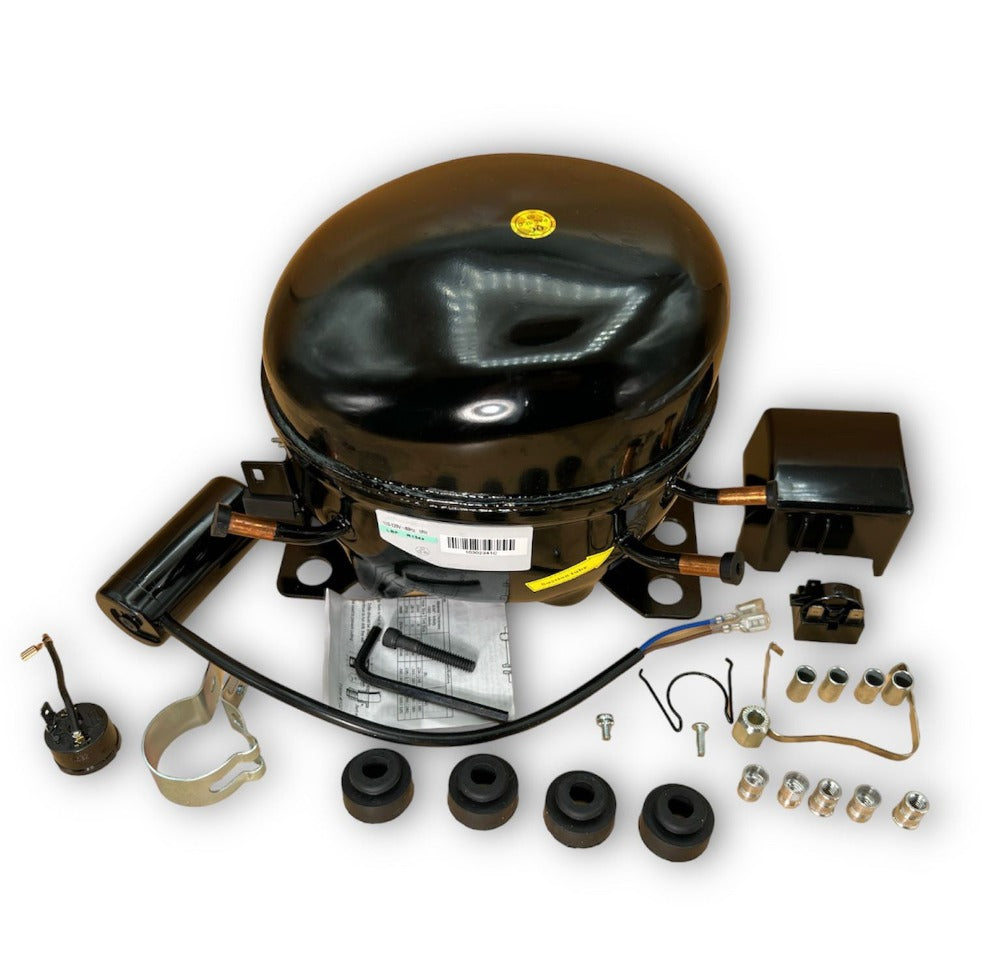

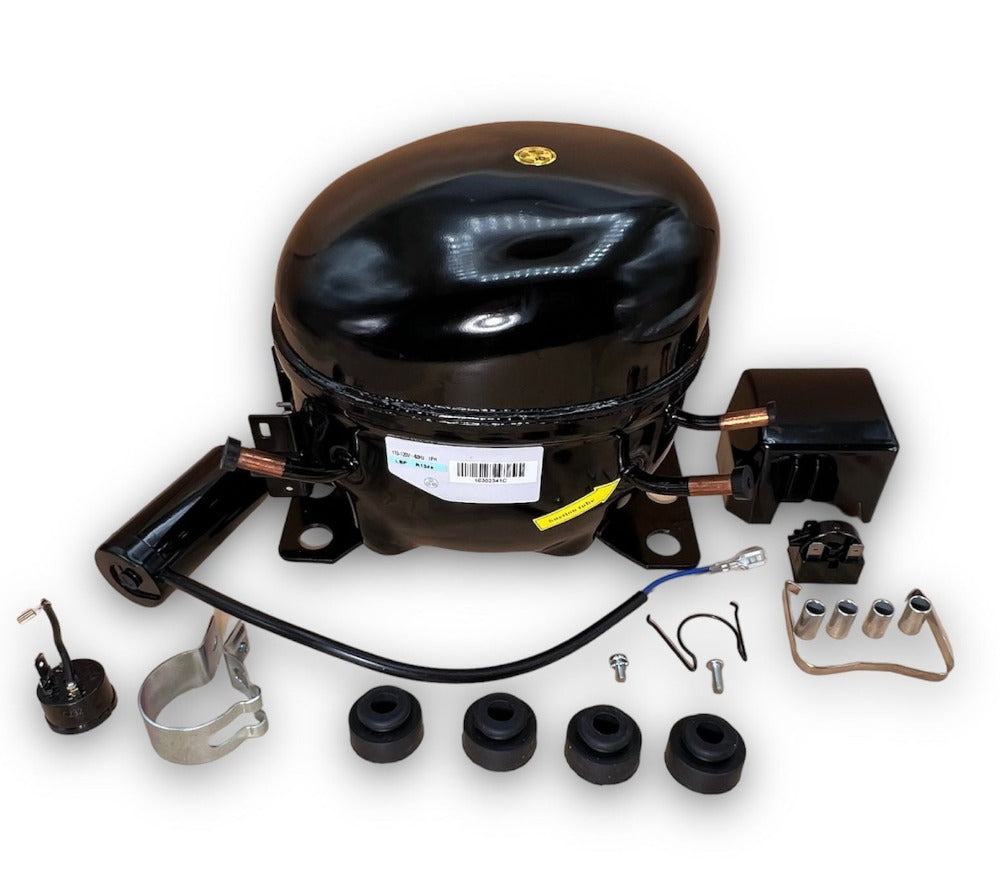

KIT INCLUDES:
- Compressor assembly
- Back cover + Bracket
- Start relay
- Start capacitor + Bracket
- Overload protector
- Mounting kit
- Rivet nuts + tool
- instructions
COMPRESSOR INSTALLATION TIPS:
How to install it?
Note: this repair has to be done by a professional or by a person with the required knowledge.
Preparing
Step 1 - Unplug the Unit
Before starting the installation, unplug the unit from the power supply. Remove the contents of the fridge and put them in another fridge or icebox temporarily.
Step 2 - Locate the Defective Compressor
Mostly, it's located at the bottom of the refrigerator and can be easily accessed from the back of the unit. Some models might have a guard or protector that has to be removed to expose the compressor.
Step 3 - Remove the Defective Part
Detach any wiring and the devices from the defective compressor and remove it from its spot. Remove any bolts or mounting hardware.
Installing
Step 1 - Add Refrigerant
Refrigerant makes the compressor work. Before charging the unit with a refrigerant, you need to pull a vacuum. In addition, ensure your fridge isn't leaking any of this refrigerant. If it is, fix the issue before replacing it.
Step 2 - Connect the Capacitor
Connect the capacitor and start relay to the new compressor following the correct wiring code as provided by your manufacturer.
Step 3 - Test the Unit
After the wiring and devices have been installed, test the unit for 24 hours.
Share
Recieved and installed it and now my fridge is running up in good order. Cool drinks for thr summer
Universal Refrigerator Compressor Kit - PCL86ER6, Can Replace Most Standard Refrigerator Compressors 1PH.
I bought this pcl86er6 compressor, it did not have the connection diagram for the capacitor. My fridge didn't have one and I would like to know if I connected it correctly. Thank you for the attention.
The product works. My fridge is back up and running. Thank you
Compressor works fine. The only issue, the pipe ends are not flared and you need couplings to reconnect with the fridge unit. That's why, I can give you a 4 star only. Another little hickup was the unit did not get delivered to the door. It was delivered to a ups store without notification where.
